6-E-4867
Heatshield, TD04

Product Type	Heatshield / Shroud
Brand	Turbo International
OE Manufacturer	MITSUBISHI
Turbo Type	TD04
Turbo Model	TD04
OE Manufacturer Part #	49135-00020
Condition	New

Availability

Web Price $6.95

Skip to the end of the images gallery

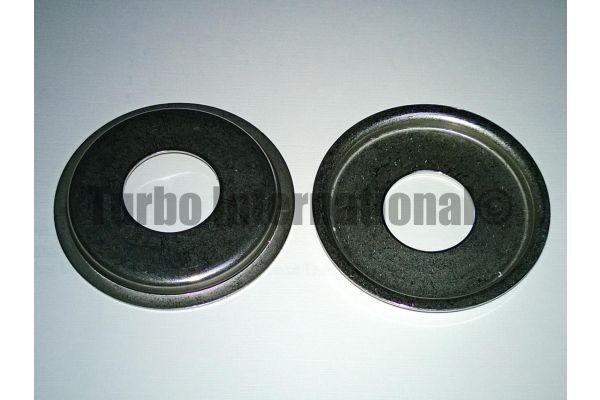

main product photo

Skip to the beginning of the images gallery

Specifications

Measurement unit mm inches

Diameter A	in mm
Diameter B	in mm
Diameter C	in mm
Diameter D	in mm
Bore Diameter E	in mm
Bore Height F	in mm
OAL G	in mm
Gauge
Rolled lip
Thickness	in mm
Weight

diagram

Where Used

Number	Manufacturer / Brand	Qty	Description
1-E-4882	Turbo International	(1)	CHRA / Cartridge, TD04L-12T/8.5
1-E-6286	Turbo International	(1)	CHRA / Cartridge, TD04-11G-4
1-E-6287	Turbo International	(1)	CHRA / Cartridge, TD04-10T-4
1-E-6289	Turbo International	(1)	CHRA / Cartridge, TD04-11G-4
1-E-6543	Turbo International	(1)	CHRA / Cartridge, TD04-09B
1-E-6883	Turbo International	(1)	CHRA / Cartridge, TF035
1-E-6905	Turbo International	(1)	CHRA / Cartridge, TF035HS-10T
1-E-7019	Turbo International	(1)	CHRA / Cartridge, TD04L-04H
1-E-5072	Turbo International	(1)	CHRA / Cartridge, TF035HM-12T
1-E-5080	Turbo International	(1)	CHRA / Cartridge, TD04L-13T-6
1-E-5083	Turbo International	(1)	CHRA / Cartridge, TD04L-14T
1-E-5085	Turbo International	(1)	CHRA / Cartridge, TF035HM-12T-4 (W.C.)
1-E-5089	Turbo International	(1)	CHRA / Cartridge, TD04LR
1-E-5098	Turbo International	(1)	CHRA / Cartridge, TD04TS-10T-8.5
1-E-5102	Turbo International	(1)	CHRA / Cartridge, TD04L-14T
1-E-5110	Turbo International	(1)	CHRA / Cartridge, TD04L-12T
1-E-5121	Turbo International	(1)	CHRA / Cartridge, TD04-10T/4

Interchanges

Part Number	Manufacturer / Brand
49135-00020	Mitsubishi
49135-19100	Mitsubishi
