5-E-3723
Seal Plate, TD05HR

Product Type	Seal Plate
Brand	Turbo International
OE Manufacturer	MITSUBISHI
Turbo Type	TD05
Turbo Model	TD05HR
OE Manufacturer Part #	49178-22510
Condition	New

Availability

Web Price $25.29

Skip to the end of the images gallery

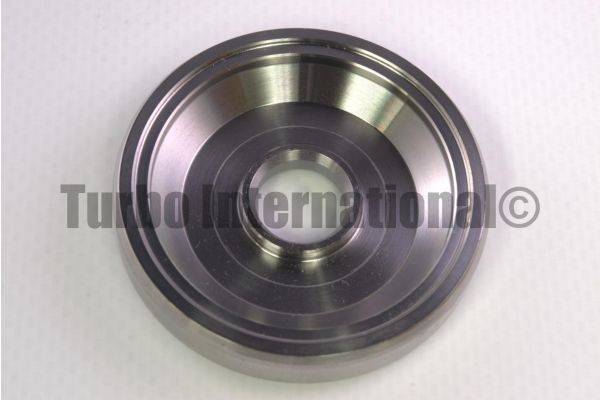

main product photo

Skip to the beginning of the images gallery

Specifications

Measurement unit mm inches

Diameter A	in mm
Diameter B	in mm
Diameter C	in mm
Diameter D	in mm
OAL E	in mm
Bore Diameter	in mm
PR Bore Diameter	in mm
CWC Diameter	in mm
O-ring Groove Diameter	in mm
O-ring Groove Diameter	in mm
Mounting Hole Diameter	in mm
Hub Pos F	in mm
Clamped Width G	in mm
Superback/Flatback/Special	in mm
Dynamic/Carbon Seal
Weight

diagram

Where Used

Number	Manufacturer / Brand	Qty	Description
1-E-6607	Turbo International	(1)	CHRA / Cartridge, TD06H-16M
1-E-6692	Turbo International	(1)	CHRA / Cartridge, TD05-16G
1-E-5075	Turbo International	(1)	CHRA / Cartridge, TD05H-14G-10
7-E-3774	Turbo International	(1)	KIT, FULL, TD05/06, S/B EVO

Interchanges

Part Number	Manufacturer / Brand
49178-22510	Mitsubishi
